Т553-1000 ELECTRICAL SPECIFICATIONS



   Type: SCR
   Maximum average on-state current (I_T(AVR)): 1600 A
   Non repetitive surge peak on-state current (I_TSM): 40000 A
   Critical repetitive rate of rise of on-state current (dI/dt): 800 A/µs
   Critical rate of rise of off-state voltage (dV/dt): 500 V/µs
   Junction to case thermal resistance (R_TH(j-c)): 0.01 K/W
   Peak on-state voltage drop (V_TM): 2 V



Т553-1000 Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac



Т553-1000 Spec

Page #1

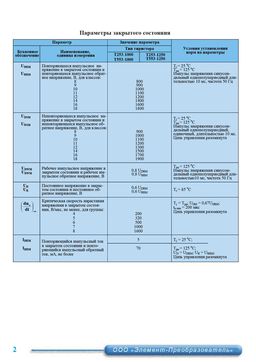

Page #2

Description

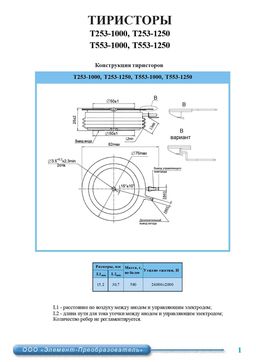

Òèðèñòîðû òàáëåòî÷íîé êîíñòðóêöèè Òèðèñòîðû òàáëåòî÷íîé êîíñòðóêöèè ÒÈÐÈÑÒÎÐÛ Ò253-1000, T253-1250 Ò553-1000, T553-1250 Êîíñòðóêöèÿ òèðèñòîðîâ Ò253-1000, Ò253-1250, Ò553-1000, Ò553-1250 В 50±1 В В 50±1 вариант 82max 75max 3.5 +0.2 х2.3min 2отв. Вывод управляющего электрода 15°±10° Дополнительный вывод
