AD108 SCR DATASHEET

AD108 ELECTRICAL SPECIFICATIONS



   Type: SCR
   Maximum repetitive peak and off-state voltage (V_DRM): 100 V
   Maximum RMS on-state current (I_T(RMS)): 1.6 A
   Non repetitive surge peak on-state current (I_TSM): 15 A
   Critical rate of rise of off-state voltage (dV/dt): 100 V/µs
   Maximum operating junction and storage temperature range (T_stg, T_j): -65..150 °C
   Triggering gate voltage (V_GT): 0.52 V
   Peak on-state voltage drop (V_TM): 1.1 V
   Holding current (I_H): 2 mA

Package: TO‑205AD



AD108 Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac



AD108 Datasheet

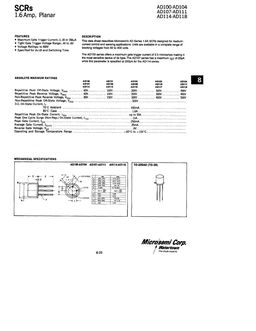

Page #1

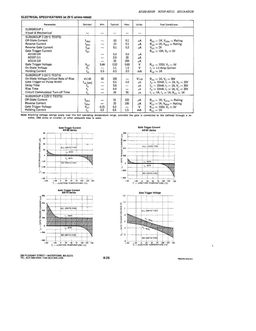

Page #2
