HST16 Triac Spec

HST16 ELECTRICAL SPECIFICATIONS



   Type: Triac
   Maximum repetitive peak and off-state voltage (V_DRM): 1000 V
   Maximum RMS on-state current (I_T(RMS)): 1 A
   Triggering gate voltage (V_GT): 1.4 V
   Peak on-state voltage drop (V_TM): 1.5 V
   Triggering gate current (I_GT): 3 mA
   Holding current (I_H): 5 mA

Package: TO‑92



HST16 Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac



HST16 Spec

Page #1

Page #2

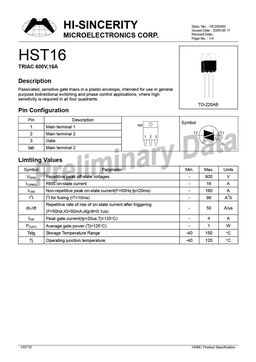

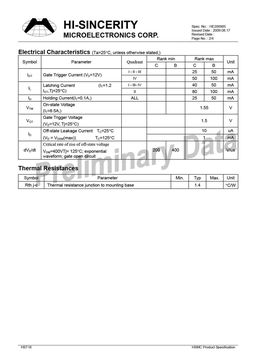

Description
