T625104004DN SCR DATASHEET

T625104004DN ELECTRICAL SPECIFICATIONS



   Type: SCR
   Maximum repetitive peak and off-state voltage (V_DRM): 600 V
   Maximum average on-state current (I_T(AVR)): 200 A
   Maximum RMS on-state current (I_T(RMS)): 315 A
   Non repetitive surge peak on-state current (I_TSM): 4000 A
   Maximum operating junction and storage temperature range (T_stg, T_j): -40..125 °C
   Junction to case thermal resistance (R_TH(j-c)): 0.055 K/W
   Triggering gate voltage (V_GT): 3 V
   Peak on-state voltage drop (V_TM): 2.9 V
   Triggering gate current (I_GT): 150 mA

Package: MODULE



T625104004DN Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac



T625104004DN Datasheet

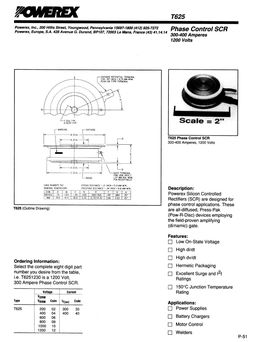

Page #1

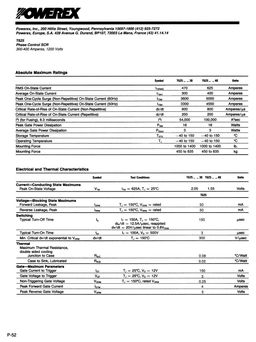

Page #2

Description
