T6420B Triac DATASHEET

T6420B ELECTRICAL SPECIFICATIONS



   Type: Triac
   Maximum repetitive peak and off-state voltage (V_DRM): 800 V
   Maximum RMS on-state current (I_T(RMS)): 40 A
   Non repetitive surge peak on-state current (I_TSM): 300 A
   Triggering gate voltage (V_GT): 2.5 V
   Peak on-state voltage drop (V_TM): 2 V
   Triggering gate current (I_GT): 50 mA
   Holding current (I_H): 60 mA

Package: TO‑48‑ISO



T6420B Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac



T6420B Datasheet

Page #1

Page #2

Description

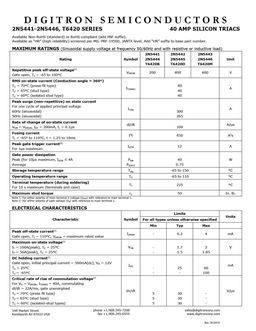

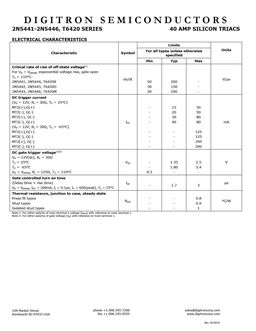

DI GI TRON S EMI CONDUCTORS 2N5441-2N5446, T6420 SERIES 40 AMP SILICON TRIACS Available Non-RoHS (standard) or RoHS compliant (add PBF suffix). Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number. MAXIMUM RATINGS (Sinusoidal supply voltage at frequency 50/60Hz and with resistive or inductive load) 2N5441 2N5442 2N5443 Rating Symbol 2N5444 2N5445 2N5446 Unit T6420B T6420D T6420M Repetitive peak off-state volt
