T683-2500 SCR DATASHEET

T683-2500 ELECTRICAL SPECIFICATIONS



Type: SCR

Maximum average on-state current (IT(AVR)): 2500 A

Non repetitive surge peak on-state current (ITSM): 55000 A

Critical repetitive rate of rise of on-state current (dI/dt): 500 A/µs

Critical rate of rise of off-state voltage (dV/dt): 500 V/µs

Junction to case thermal resistance (RTH(j-c)): 0.01 K/W

Peak on-state voltage drop (VTM): 2 V



T683-2500 Replacements

SYMBOL VALUES UNITS
Type
PGM > W
VDRM > V
IT(AVR) > A
IT(RMS) > A
ITSM > A
dI/dt > A/µs
dV/dt > V/µs
Tstg, Tj > °C
RTH(j-a) < K/W
RTH(j-c) < K/W
VGT < V
VTM < V
IGT < mA
IH < mA
Package



Replacement Search



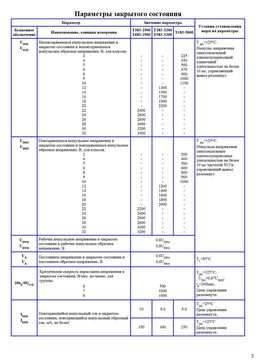

T683-2500 Datasheet

Page #2

T683-2500
 datasheet

Page #2

T683-2500
 datasheet #2

Description

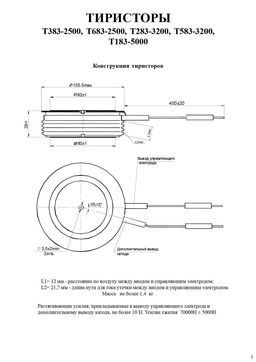

Òèðèñòîðû òàáëåòî÷íîé êîíñòðóêöèè ÒÈÐÈÑÒÎÐÛ T383-2500, T683-2500, T283-3200, T583-3200, Ò183-5000 Êîíñòðóêöèÿ òèðèñòîðîâ 105.5max 80±1 400±20 L2min 80±1 Вывод управляющего электрода 3,5х2min Дополнительный вывод 2отв. катода L1= 12 ìì - ðàññòîÿíèå ïî âîçäóõó ìåæäó àíîäîì è óïðàâëÿþùèì ýëåêòðîäîì; L2= 2
