T690N02TOF Triac DATASHEET

T690N02TOF ELECTRICAL SPECIFICATIONS



   Type: Triac
   Maximum peak gate power (P_GM): 0.5 W
   Maximum repetitive peak and off-state voltage (V_DRM): 600 V
   Maximum RMS on-state current (I_T(RMS)): 6 A
   Non repetitive surge peak on-state current (I_TSM): 60 A
   Critical rate of rise of off-state voltage (dV/dt): 50 V/µs
   Maximum operating junction and storage temperature range (T_stg, T_j): -40..125 °C
   Junction to ambient thermal resistance (R_TH(j-a)): 62.5 K/W
   Junction to case thermal resistance (R_TH(j-c)): 2.6 K/W
   Triggering gate voltage (V_GT): 1.3 V
   Peak on-state voltage drop (V_TM): 1.6 V
   Triggering gate current (I_GT): 10 mA
   Holding current (I_H): 15 mA

Package: TO‑220AB



T690N02TOF Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac



T690N02TOF Datasheet

Page #1

Page #2

Description

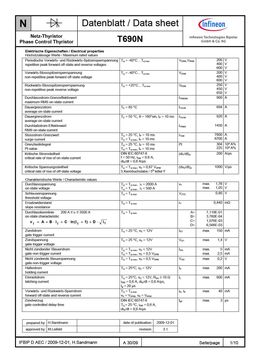

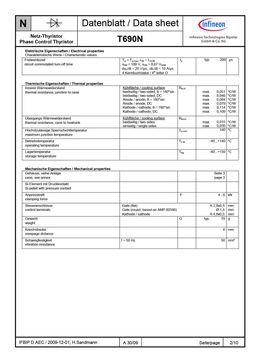

Datenblatt / Data sheet N Netz-Thyristor T690N Phase Control Thyristor Elektrische Eigenschaften / Electrical properties Höchstzulässige Werte / Maximum rated values 200 V Periodische Vorwärts- und Rückwärts-Spitzensperrspannung Tvj = -40°C... Tvj max VDRM,VRRM enndaten 400 V repetitive peak forward off-state and reverse voltages 600 V Elektrische Eigenschaften 200 V Vorwärts-Stossspitzensperrspannung Tvj = -40°C... Tvj max VDSM 400 V non-repetitive pe
