T820148004DH Spec

T820148004DH ELECTRICAL SPECIFICATIONS



   Maximum repetitive peak and off-state voltage (V_DRM): 1800 V
   Maximum RMS on-state current (I_T(RMS)): 750 A



T820148004DH Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac



T820148004DH Spec

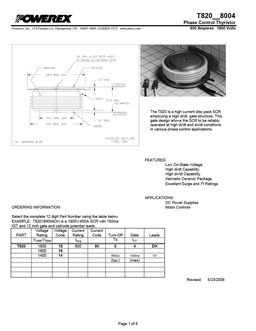

Page #1

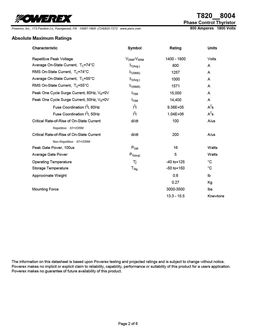

Page #2

Description

T820__8004 Phase Control Thyristor Powerex, Inc., 173 Pavilion Ln, Youngwood, PA 15697-1800 (724)925-7272 www.pwrx.com 800 Amperes 1800 Volts The T820 is a high current disc pack SCR employing a high di/dt gate structure. This gate design allows the SCR to be reliably operated at high di/dt and dv/dt conditions in various phase control applications. FEATURES: Low On-State Voltage High di/dt Capability High dv/dt Capability Hermetic Ceramic Package Excellent Surge and I2t Rati
