T9G0141603DH Spec

T9G0141603DH ELECTRICAL SPECIFICATIONS



   Maximum repetitive peak and off-state voltage (V_DRM): 1600 V
   Maximum RMS on-state current (I_T(RMS)): 1660 A



T9G0141603DH Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac



T9G0141603DH Spec

Page #1

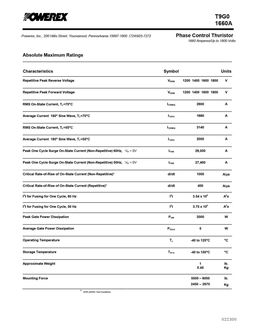

Page #2

Description

T9G0 1660A Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724)925-7272 Phase Control Thyristor 1660 Amperes/Up to 1800 Volts Description: The T9GO is a medium voltage, high current disc pack SCR employing a center fired, amplifying gate structure suitable for operation to 400 Hz. The amplifying gate allows this SCR to be reliably operated at high di/dt and high dv/dt conditions in phase control applications. Features: Low On-State Voltage Hi
