T9S0162003DH DATASHEET

T9S0162003DH ELECTRICAL SPECIFICATIONS



   Maximum repetitive peak and off-state voltage (V_DRM): 2200 V
   Maximum RMS on-state current (I_T(RMS)): 1800 A



T9S0162003DH Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac

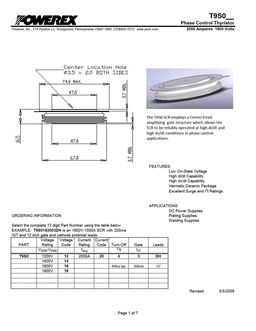

T9S0162003DH Datasheet

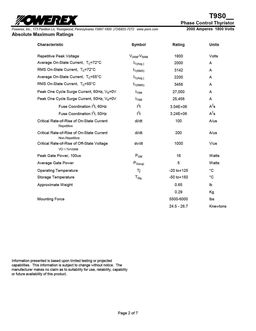

Page #1

Page #2

Description

T9S0__ Phase Control Thyristor Powerex, Inc., 173 Pavilion Ln, Youngwood, Pennsylvania 15697-1800 (724)925-7272 www.pwrx.com 2000 Amperes 1800 Volts The T9S0 SCR employs a Center‐Fired  amplifying gate structure which allows the  SCR to be reliably operated at high di/dt and  high dv/dt conditions in phase control  applications. FEATURES: Low On-State Voltage High di/dt Capability High dv/dt Capability Hermetic Ceramic Package Excellent Surge and I2t Ra
