TBK5163203DH DATASHEET

TBK5163203DH ELECTRICAL SPECIFICATIONS



   Maximum repetitive peak and off-state voltage (V_DRM): 600 V
   Maximum RMS on-state current (I_T(RMS)): 3000 A



TBK5163203DH Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac

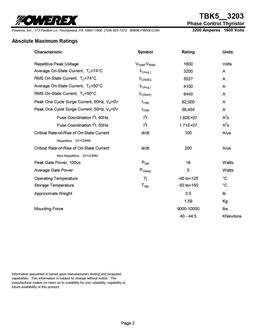

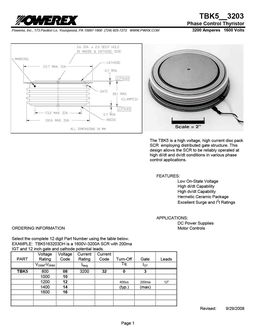

TBK5163203DH Datasheet

Page #1

Page #2

Description

TBK5__3203 Phase Control Thyristor Powerex, Inc., 173 Pavilion Ln, Youngwood, PA 15697-1800 (724) 925-7272 WWW,PWRX.COM 3200 Amperes 1600 Volts The TBK5 is a high voltage, high current disc pack SCR employing distributed gate structure. This design allows the SCR to be reliably operated at high di/dt and dv/dt conditions in various phase high di/dt and dv/dt conditions in various phase control applications. FEATURES: Low On-State Voltage High di/dt Capability High dv/dt Capabi
