TMA126S-L Triac Spec

TMA126S-L ELECTRICAL SPECIFICATIONS



   Type: Triac
   Maximum repetitive peak and off-state voltage (V_DRM): 400 V
   Maximum average on-state current (I_T(AVR)): 3 A
   Maximum RMS on-state current (I_T(RMS)): 30 A
   Peak on-state voltage drop (V_TM): 1.5 V
   Triggering gate current (I_GT): 20 mA

Package: TO‑220F



TMA126S-L Replacements

Type
	< PGM <		W
	< VDRM <		V
	< IT(AVR) <		A
	< IT(RMS) <		A
	< ITSM <		A
	< dI/dt <		A/µs
	< dV/dt <		V/µs
Tstg, Tj	>		°C
RTH(j-a)	<		K/W
RTH(j-c)	<		K/W
VGT	<		V
VTM	<		V
IGT	<		mA
IH	<		mA
Package			+ similar ones

 SEARCH - Replacements for SCR and Triac



TMA126S-L Spec

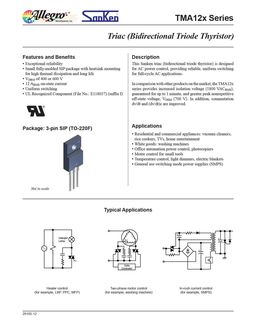

Page #1

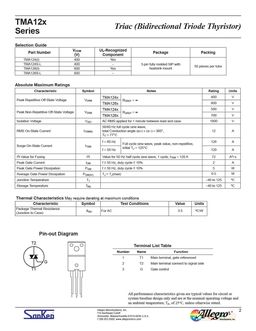

Page #2

Description

TMA12x Series Triac (Bidirectional Triode Thyristor) Features and Benefits Description ▪ Exceptional reliability This Sanken triac (bidirectional triode thyristor) is designed ▪ Small fully-molded SIP package with heatsink mounting for AC power control, providing reliable, uniform switching for high thermal dissipation and long life for full-cycle AC applications. ▪ VDRM of 400 or 600 V ▪ 12 ARMS on-state current In comparison with other products on the market, the TMA12x �
