2T6551 Datasheet. Specs and Replacement

Type Designator: 2T6551  📄📄

Material of Transistor: Si

Polarity: NPN

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 0.8 W

Maximum Collector-Base Voltage |Vcb|: 75 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.5 A

Max. Operating Junction Temperature (Tj): 175 °C

Electrical Characteristics

Transition Frequency (ft): 200 MHz

Forward Current Transfer Ratio (hFE), MIN: 26

Noise Figure, dB: -

Package: TO5

  📄📄 Copy

 2T6551 Substitution

- BJT ⓘ Cross-Reference Search

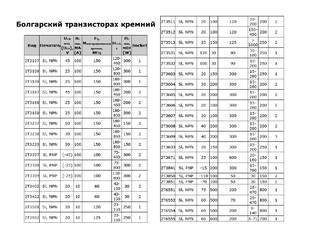

2T6551 datasheet
