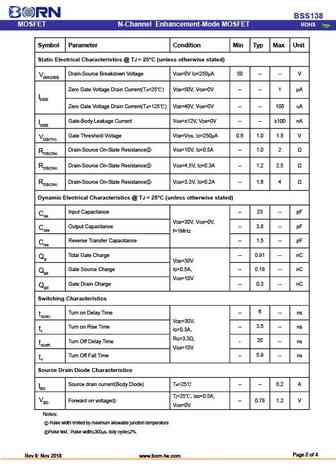

View bss138 detailed specification:

bss138bss138

BSS138 MOSFET ROHS N-Channel Enhancement-Mode MOSFET SOT-23 - Features Low RDS(on) @VGS=10V 3.3V Logic Level Control N Channel SOT23 Package Pb-Free, RoHS Compliant V R Typ I Max (BR)DSS DS(ON) D Applications LED Lighting Application, 1 @ 10V ON/OFF switch 50V 0.5A 1.2 @ 4.5V Networking Order Information Marking Product Package Packing Min Unit Quantity KN BSS138 SOT23 3000PCS/Reel 3000PCS Absolute Maximum Ratings Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. Symbol Parameter Rating Unit Common Ratings (TA=25 C Unless Otherwise Noted) VGS Gate-Source Voltage 12 V ... See More ⇒
