View bc2302-2.8a detailed specification:

bc2302-2.8abc2302-2.8a

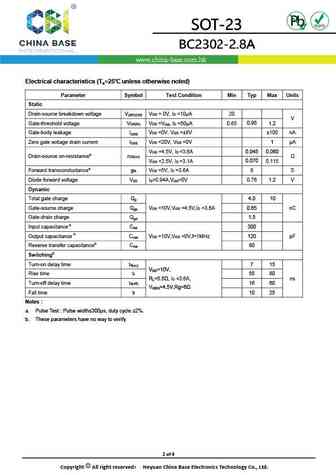

Plastic-Encapsulate MOSFETS N-Channel 20-V(D-S) MOSFET SOT-23 FEATURE TrenchFET Power MOSFET APPLICATIONS 1. GATE Load Switch for Portable Devices 2. SOURCE DC/DC Converter 3. DRAIN MARKING 2302 Maximum ratings (Ta=25 unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS 20 V Gate-Source Voltage VGS 8 Continuous Drain Current ID 2.8 A Continuous Source-Drain Current(Diode Conduction) IS 0.6 Power Dissipation PD 0.35 W Thermal Resistance from Junction to Ambient (t 5s) R JA 357 /W Operating Junction TJ 150 Storage Temperature TSTG -55 +150 1 of 4 Copyright All right reserved Heyuan China Base Electronics Technology Co., Ltd. Electrical characteristics (Ta=25 unless otherwise noted) Parameter Symbol Test Condition Min Typ Max Units Static Drain-source breakdown voltage V(BR)DSS VGS = 0V, ... See More ⇒
