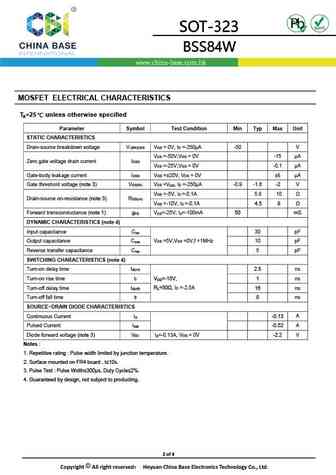

View bss84w detailed specification:

Plastic-Encapsulate MOSFETs P-CHANNEL MOSFET ID V(BR)DSS RDS(on)MAX SOT-323 8 @-10V 3 -50V -0.13A @ 10 -5V 1 DESCRIPTION 2 These miniature surface mount MOSFETs reduce power loss conserve 1. GATE energy, making this device ideal for use in small power management circuitry. 2. SOURCE 3. DRAIN FEATURE Energy Efficient Low Threshold Voltage High-speed Switching Miniature Surface Mount Package Saves Board Space APPLICATION DC-DC converters,load switching, power management in portable and battery-powered products such as computers, printers, cellular and cordless telephones. MARKING Equivalent Circuit MAXIMUM RATINGS (Ta=25 unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS -50 V Gate-Source Voltage VGS 20 V Continuous Drain Current ID -0.13 A Pulsed Drain Current (note 1) @tp ... See More ⇒
