View 2n2222 2n2222a cnv 2 datasheet:

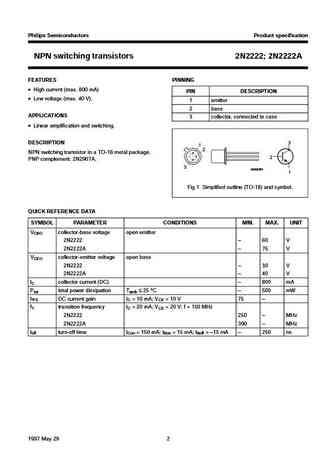

DISCRETE SEMICONDUCTORSDATA SHEETM3D1252N2222; 2N2222ANPN switching transistors1997 May 29Product specificationSupersedes data of September 1994File under Discrete Semiconductors, SC04Philips Semiconductors Product specificationNPN switching transistors 2N2222; 2N2222AFEATURES PINNING High current (max. 800 mA)PIN DESCRIPTION Low voltage (max. 40 V).1 emitter2 baseAPPLICATIONS3 collector, connected to case Linear amplification and switching.DESCRIPTION 3handbook, halfpage12NPN switching transistor in a TO-18 metal package.2PNP complement: 2N2907A.3MAM2641Fig.1 Simplified outline (TO-18) and symbol.QUICK REFERENCE DATASYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter2N2222 - 60 V2N2222A - 75 VVCEO collector-emitter voltage open base2N2222 - 30 V2N2222A - 40 VIC colle
