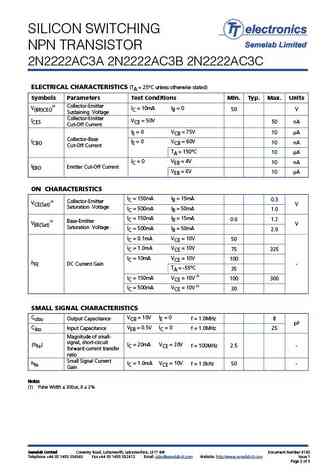

View 2n2222ac3a 2n2222ac3b 2n2222ac3c datasheet:

SILICON SWITCHING NPN TRANSISTOR 2N2222AC3A, 2N2222AC3B 2N2222AC3C High Speed Saturated Switching Hermetic LCC3 Ceramic package. Variant B to MIL-PRF-19500/255 outline Screening Options Available ABSOLUTE MAXIMUM RATINGS (TA = 25C unless otherwise stated) VCBO Collector Base Voltage 75V VCEO Collector Emitter Voltage 50V VEBO Emitter Base Voltage 6V IC Continuous Collector Current 0.8A PD TA = 25C Total Power Dissipation at 500mW Derate Above 25C 2.86mW/C TJ Junction Temperature Range -65 to +200C Tstg Storage Temperature Range -65 to +200C THERMAL PROPERTIES Symbols Parameters Max. Units RJA(1) Thermal Resistance, Junction To Ambient 325 C/W RJSP(IS)(2) Thermal Resistance Junction to Solder Pads 110 C/W (1) For non-thermal conductive PCB or unknown PCB surface mount conditi
