View 2n3250 1 datasheet:

2n3250_12n3250_1

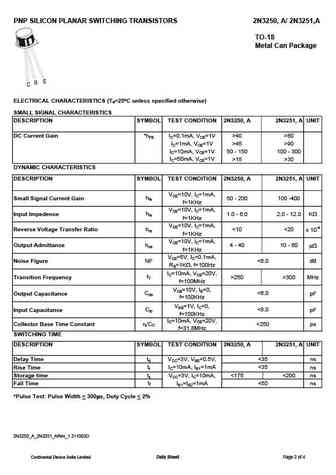

Continental Device India LimitedAn ISO/TS 16949, ISO 9001 and ISO 14001 Certified CompanyPNP SILICON PLANAR SWITCHING TRANSISTORS 2N3250, A/ 2N3251,A TO-18 Metal Can PackageDesigned for Small Signal, General Purpose and Switching ApplicationsABSOLUTE MAXIMUM RATINGS2N3250 2N3250ADESCRIPTION SYMBOL UNIT2N3251 2N3251AVCEOCollector Emitter Voltage 40 60 VVCBOCollector Base Voltage 50 60 VVEBOEmitter Base Voltage 5 VICCollector Current Continuous 200 mAPower Dissipation @ Ta=25C PD 360 mWDerate Above 25C 2.06 mW/ CPower Dissipation @ Tc=25C PD 1.2 WDerate Above 25C 6.9 mW/ COperating And Storage Junction Tj, Tstg - 65 to +200 CTemperature RangeTHERMAL RESISTANCERth (j-a)Junction to Ambient in free air 490 C/WRth (j-c)Junction to Case 150 C/WELECTRICAL CHARACTERISTICS (Ta=25C unless specified otherwise )DESCR
