View 2n3772 datasheet:

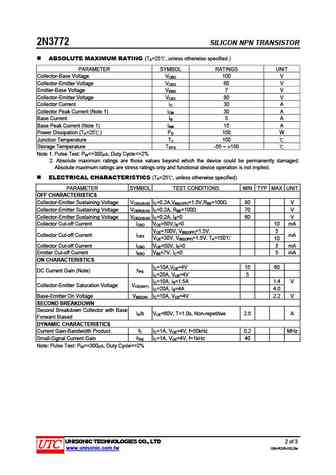

UNISONIC TECHNOLOGIES CO., LTD 2N3772 SILICON NPN TRANSISTOR SILICON NPN TRANSISTORS DESCRIPTION The UTC 2N3772 is a silicon power transistor in TO-3 metal case. It is designed for linear amplifiers, series pass regulators, and inductive switching applications. 1TO-3 ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3 2N3772L-T30-Y 2N3772G-T30-Y TO-3 B E C Traywww.unisonic.com.tw 1 of 3 Copyright 2012 Unisonic Technologies Co., LTD QW-R205-002,Ba 2N3772 SILICON NPN TRANSISTOR ABSOLUTE MAXIMUM RATING (TA=25, unless otherwise specified ) PARAMETER SYMBOL RATINGS UNITCollector-Base Voltage VCBO 100 VCollector-Emitter Voltage VCEO 60 VEmitter-Base Voltage VEBO 7 VCollector-Emitter Voltage VCEV 80 VCollector Current IC 30 ACollector Peak Current (Note 1) ICM 30 ABase Current IB 5 AB
