View 2n3773 datasheet:

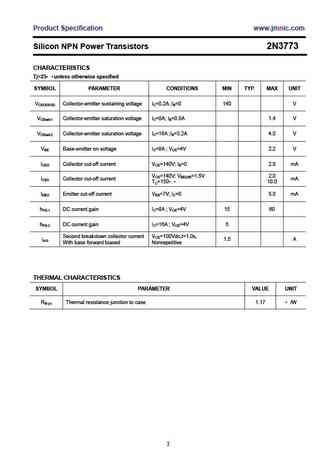

Product Specification www.jmnic.comSilicon NPN Power Transistors 2N3773 DESCRIPTION With TO-3 package Complement to type 2N6609 High DC current gain Low saturation voltage High safe operating area APPLICATIONS Designed for high power audio, disk head positioners and other linear applications. These devices can also be used in power switching circuits such as relay or solenoid drivers, dc to dc converters or inverters. PINNING PIN DESCRIPTION1 Base 2 EmitterFig.1 simplified outline (TO-3) and symbol 3 CollectorAbsolute maximum ratings(Ta=) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter 160 V VCEO Collector-emitter voltage Open base 140 V VEBO Emitter-base voltage Open collector 7 V IC Collector current 16 A ICM Collector current-peak 30 A IB Base current 4 AIBM Base current-peak 15 A
