View 2n3773 2n6609 datasheet:

2n3773_2n66092n3773_2n6609

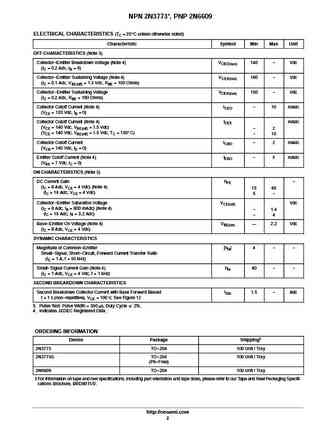

NPN 2N3773*, PNP 2N6609Preferred DeviceComplementary SiliconPower TransistorsThe 2N3773 and 2N6609 are PowerBaset power transistorsdesigned for high power audio, disk head positioners and other linearapplications. These devices can also be used in power switchinghttp://onsemi.comcircuits such as relay or solenoid drivers, DC-DC converters orinverters.16 A COMPLEMENTARYFeaturesPOWER TRANSISTORS Pb-Free Packages are Available** 140 V, 150 W High Safe Operating Area (100% Tested) 150 W @ 100 V Completely Characterized for Linear Operation High DC Current Gain and Low Saturation VoltageMARKINGDIAGRAMhFE = 15 (Min) @ 8.0 A, 4.0 VVCE(sat) = 1.4 V (Max) @ IC = 8.0 A, IB = 0.8 A For Low Distortion Complementary Designs2NxxxxMAXIMUM RATINGS (Note 1) MEXAYYWWRating Symbol Value UnitTO-204CASE 1-07Collector - Emitter Voltag
