View 2n3904 datasheet:

2n39042n3904

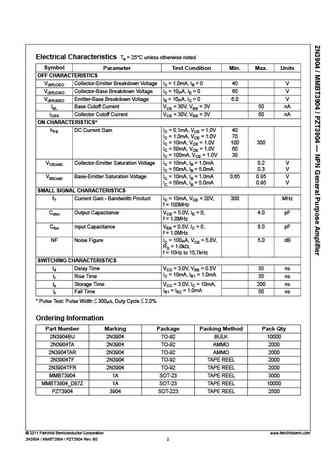

October 20112N3904 / MMBT3904 / PZT3904NPN General Purpose AmplifierFeatures This device is designed as a general purpose amplifier and switch. The useful dynamic range extends to 100 mA as a switch and to 100 MHz as an amplifier.2N3904 PZT3904MMBT3904CCEECBTO-92 SOT-23 SOT-223BMark:1AEBCAbsolute Maximum Ratings* Ta = 25C unless otherwise noted Symbol Parameter Value UnitsVCEO Collector-Emitter Voltage 40 VVCBO Collector-Base Voltage 60 VVEBO Emitter-Base Voltage 6.0 VIC Collector Current - Continuous 200 mATJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 C* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.NOTES:1) These ratings are based on a maximum junction temperature of 150 degrees C.2) These are steady state limits. The factory should
