View 2n4031 2n4033 datasheet:

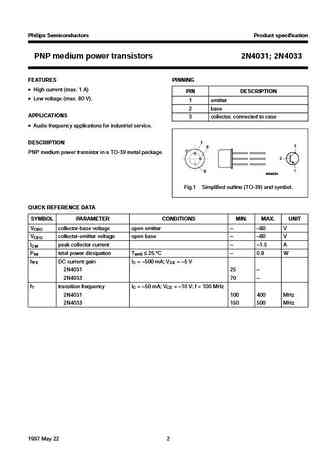

DISCRETE SEMICONDUCTORSDATA SHEETbook, halfpageM3D1112N4031; 2N4033PNP medium power transistors1997 May 22Product specificationSupersedes data of September 1994File under Discrete Semiconductors, SC04Philips Semiconductors Product specificationPNP medium power transistors 2N4031; 2N4033FEATURES PINNING High current (max. 1 A)PIN DESCRIPTION Low voltage (max. 80 V).1 emitter2 baseAPPLICATIONS3 collector, connected to case Audio frequency applications for industrial service.1DESCRIPTION handbook, halfpage32PNP medium power transistor in a TO-39 metal package.213MAM334Fig.1 Simplified outline (TO-39) and symbol.QUICK REFERENCE DATASYMBOL PARAMETER CONDITIONS MIN. MAX. UNITVCBO collector-base voltage open emitter --80 VVCEO collector-emitter voltage open base --80 VICM peak collector current --1.5 APtot tota
