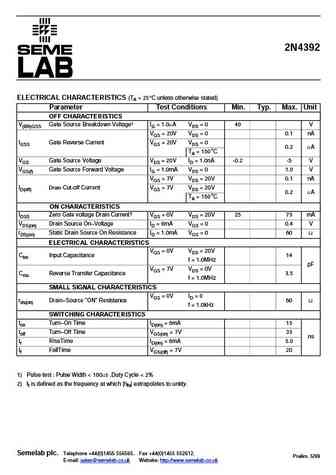

2N4392MECHANICAL DATADimensions in mm (inches)JFET SWITCHING5.84 (0.230)5.31 (0.209)4.95 (0.195)N CHANNEL- DEPLETION4.52 (0.178)FEATURES LOW ON RESISTANCE0.48 (0.019)0.41 (0.016) FAST SWITCHINGdia. MILITARY OPTIONS AVAILABLE2.54 (0.100)Nom.3 12APPLICATIONS: SWITCHING APPLICATIONSTO18 METAL PACKAGEUnderside ViewPIN 1 Source PIN 2 Drain PIN 3 Gate(Gate is connected to case)ABSOLUTE MAXIMUM RATINGS (Tcase = 25C unless otherwise stated)VDS DrainSource Voltage 40VVDG DrainGate Voltage 40VVGS GateSource Voltage 40VIGF Forward Gate Current 50mAPD Total Device Dissipation @ TC = 25C 1.8WDerate above 25C 10mW/ CTJ Operating Junction Temperature Range 65 to +175CTSTG Storage Temperature Range 65 to +175CSemelab plc. Telephone +44(0)1455 556565. Fax +44(0)1455 552612.Prel
