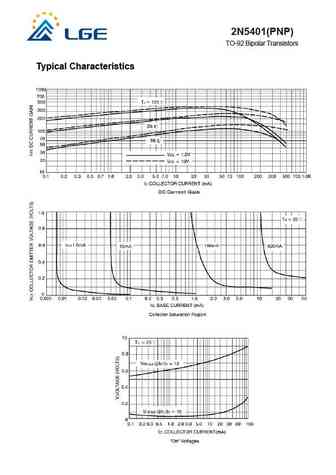

2N5401(PNP) TO-92 Bipolar TransistorsTO-92 1. EMITTER 2. BASE 3. COLLECTOR Features Switching and amplification in high voltage Applications such as telephony Low current(max. 600mA) High voltage(max.160v) MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Parameter Value UnitsDimensions in inches and (millimeters)VCBO Collector-Base Voltage -160 V VCEO Collector-Emitter Voltage -150 V VEBO Emitter-Base Voltage -5 V IC Collector Current -Continuous -0.6 A PC Collector Power Dissipation 0.625 W Tj Junction Temperature 150 Tstg Storage Temperature -55-150 ELECTRICAL CHARACTERISTICS (Tamb=25 unless otherwise specified) Parameter Symbol Test conditions MIN TYP MAX UNIT Collector-base breakdown voltage V(BR)CBO -160 VIC= -100A, IE=0 Collector-emitter breakdown voltage V(BR)CEO IC= -1mA, IB=0 -150 VEmitte
