View 2n5401 datasheet:

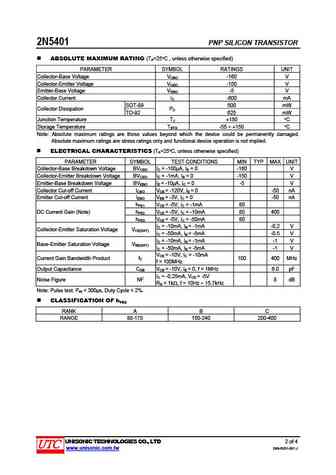

UNISONIC TECHNOLOGIES CO., LTD 2N5401 PNP SILICON TRANSISTOR HIGH VOLTAGE SWITCHING TRANSISTOR FEATURES * Collector-emitter voltage: VCEO = -150V * High current gain, ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3- 2N5401G-x-AB3-R SOT-89 B C E Tape Reel2N5401L-x-T92-B 2N5401G-x-T92-B TO-92 E B C Tape Box2N5401L-x-T92-K 2N5401G-x-T92-K TO-92 E B C Bulk2N5401L-x-T92-A-B 2N5401G-x-T92-A-B TO-92 E C B Tape Box2N5401L-x-T92-A-K 2N5401G-x-T92-A-K TO-92 E C B BulkNote: Pin Assignment: B: Base C: Collector E: Emitter MARKING SOT-89 TO-92www.unisonic.com.tw 1 of 4 Copyright 2016 Unisonic Technologies Co., Ltd QW-R201-001.J 2N5401 PNP SILICON TRANSISTOR ABSOLUTE MAXIMUM RATING (TA=25C , unless otherwise specified) PARAMETER SYMBOL RATINGS UNITCollector-Base Voltage VCBO -16
