View 2n5415 2n5416 datasheet:

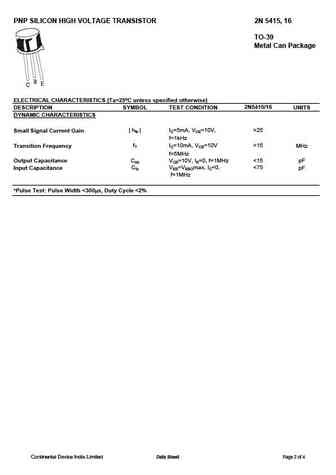

Continental Device India LimitedAn ISO/TS16949 and ISO 9001 Certified CompanyPNP SILICON HIGH VOLTAGE TRANSISTOR 2N 5415, 16TO-39Metal Can PackageHigh Speed Switching and Linear amplifier Appliances in Military,Industrial and Commercial Equipment.ABSOLUTE MAXIMUM RATINGS (Ta=25C unless specified otherwise)DESCRIPTION SYMBOL 2N5415 2N5416 UNITSVCEOCollector Emitter Voltage 200 300 VVCBOCollector Base Voltage 200 350 VVEBOEmitter Base Voltage 46 VICCollector Current Continuous (--------------------1------------------) AIBBase Current Continuous (-----------------0.5------------------) APDPower Dissipation @ Ta=50C (--------------------1------------------) WDerate Above 25C mW/CPDPower Dissipation@ Tc=25C (------------------10------------------- WDerate Above 25CJunction Temperature Tj (--------------------200-----------------
