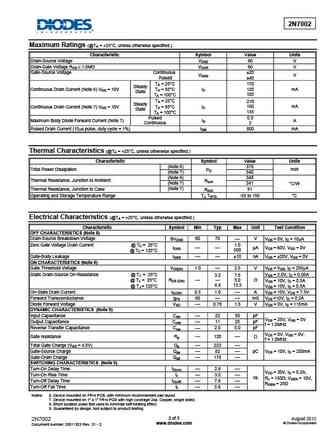

View 2n7002-7-f 2n7002-7 datasheet:

2n7002-7-f_2n7002-72n7002-7-f_2n7002-7

2N7002 N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features Low On-ResistanceID max V(BR)DSS RDS(ON) max Low Gate Threshold Voltage TA = 25C Low Input Capacitance 60V 7.5 @ VGS = 5V 210mA Fast Switching Speed Small Surface Mount Package Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. Green Device (Notes 3 & 4) Qualified to AEC-Q101 standards for High Reliability Description This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it Mechanical Data ideal for high efficiency power management applications. Case: SOT23 Case Material: Molded Plastic, Green Molding Compound. UL Flammability Classification Rating 94V-0 Applications Moisture Sensitivity: Level 1 per J-STD-0
