View 2n7002 datasheet:

2n70022n7002

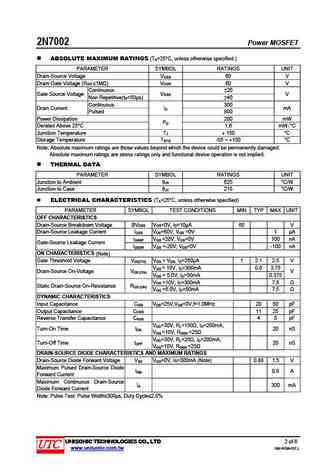

UNISONIC TECHNOLOGIES CO., LTD 2N7002 Power MOSFET 0.3A, 60V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 2N7002 uses advanced technology to provide excellent RDS(ON), low gate charge and operation with low gate voltages. This device is suitable for use as a load switch or in PWM applications. FEATURES * High Density Cell Design for Low R . DS(ON)* Voltage Controlled Small Signal Switch * Rugged and Reliable * High Saturation Current Capability SYMBOL ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3 2N7002L-AE2-R 2N7002G-AE2-R SOT-23-3 S G D Tape Reel MARKING 3PL: Lead FreeG: Halogen Freewww.unisonic.com.tw 1 of 6 Copyright 2013 Unisonic Technologies Co., Ltd QW-R203-037, L 2N7002 Power MOSFET ABSOLUTE MAXIMUM RATINGS (TA=25C, unless otherwise specified.) PARAMETER
