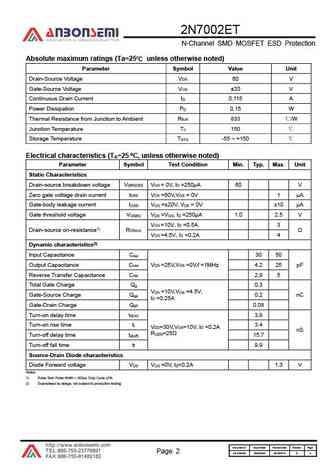

2N7002ET N-Channel SMD MOSFET ESD ProtectionProduct Summary V R I (BR)DSS DS(on)MAX D3@10V 60V 0.115A 4@4.5V Feature Application High density cell design for ultra low on-resistance Load Switch for Portable Devices Voltage controlled small signal switch DC/DC Converter Rugged and reliable Battery Switch High saturation current capability ESD protected Gate HBM 2KV Package Circuit diagram SOT-523 Marking K72 Document ID Issued Date Revised Date Revision Page. Page 1 AS-3150269 2003/03/08 2012/05/16 D 4 2N7002ET N-Channel SMD MOSFET ESD ProtectionAbsolute maximum ratings (Ta=25 unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage V 60 V DSGate-Source Voltage V 20 V GSContinuous Drain Current I 0.115 A DPower Dissipation P 0.15 W DThermal Resistance from Junc
