View 2n7002gp datasheet:

2n7002gp2n7002gp

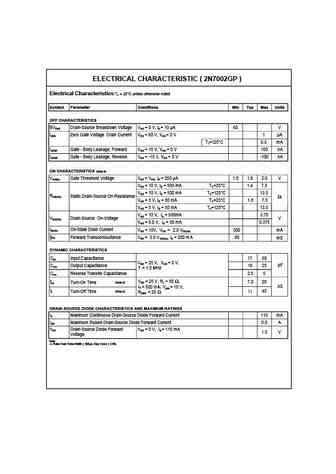

CHENMKO ENTERPRISE CO.,LTD2N7002GPSURFACE MOUNT N-Channel Enhancement Mode Field Effect Transistor VOLTAGE 60 Volts CURRENT 115 mAmpereAPPLICATION* Servo motor control. * Power MOSFET gate drivers.* Other switching applications.SOT-23FEATURE* Small surface mounting type. (SOT-23)* High density cell design for low RDS(ON). * Suitable for high packing density.* Rugged and reliable.(1)* High saturation current capability.(3)* Voltage controlled small signal switch. (2)( ) ( ).055 1.40 .028 0.70( ) ( ).047 1.20 .020 0.50( ).103 2.64.086 (2.20)D(3)( ).045 1.15CIRCUIT( ).033 0.85(1) GDimensions in inches and (millimeters) SOT-23(2)SAbsolute Maximum Ratings TA = 25C unless otherwise noted2N7002GPSymbol Parameter UnitsVDSS Drain-Source Voltage 60 VVDGR Drain-Gate Voltage (RGS = 1 M ) 60 VVGSS Gate-Sou
