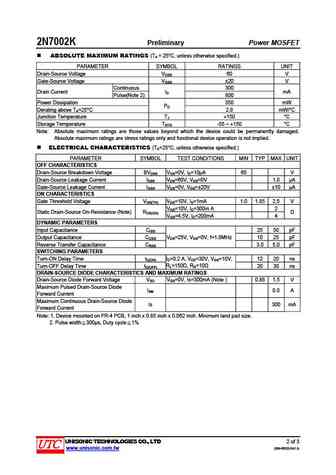

View 2n7002k datasheet:

2n7002k2n7002k

UNISONIC TECHNOLOGIES CO., LTD 2N7002K Preliminary Power MOSFET 300mA, 60V N-CHANNEL ENHANCEMENT MODE MOSFET DESCRIPTION The UTC 2N7002K uses advanced technology to provide excellent RDS(ON), low gate charge and low gate voltages during operation. This device is suitable for use as a load switch or in PWM applications. FEATURES * Low Reverse Transfer Capacitance (CRSS = typical 3.0 pF) * ESD Protected * Fast Switching Capability * Avalanche Energy Specified * Improved dv/dt Capability, High Ruggedness SYMBOL 3.Drain2.Gate1.Source ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3 4 5 6 2N7002KL-AE2-R 2N7002KG-AE2-R SOT-23-3 S G D - - - Tape Reel MARKING www.unisonic.com.tw 1 of 4 Copyright 2012 Unisonic Technologies Co., Ltd QW-R502-541.b 2N7002K Preliminary Power MOSFET
