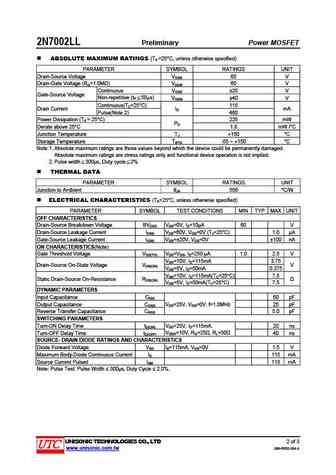

UNISONIC TECHNOLOGIES CO., LTD 2N7002LL Preliminary Power MOSFET 60V, 115mA N-CHANNEL POWER MOSFET DESCRIPTION 3The UTC 2N7002LL uses advanced technology to provide excellent RDS(ON), low gate charge and operation with low gate 1voltages. This device is suitable for use as a load switch or in 2PWM applications. FEATURES SOT-23-3(JEDEC TO-236)* RDS(ON) = 7.5 @VGS = 10 V * Low Reverse Transfer Capacitance ( CRSS = typical 5 pF ) * Fast Switching Capability * Avalanche Energy Specified * Improved dv/dt Capability, High Ruggedness SYMBOL 3. Drain2.Gate1.Source ORDERING INFORMATION Ordering Number Pin Assignment Package Packing Lead Free Halogen Free 1 2 3 2N7002LLK-AE2-R 2N7002LLG-AE2-R SOT-23-3 S G D Tape Reel MARKING www.unisonic.com.tw 1 of 3 Copyright 2012 Unisonic Technologies Co., Ltd QW-R502-284.d 2N7002
