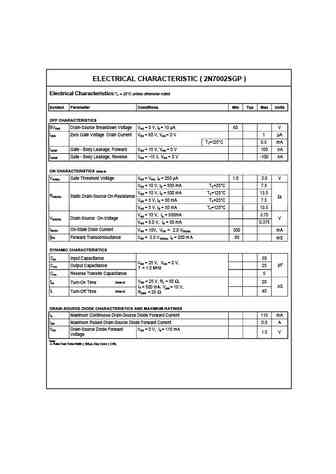

CHENMKO ENTERPRISE CO.,LTD2N7002SGPSURFACE MOUNTDual N-Channel Enhancement MOS FET VOLTAGE 60 Volts CURRENT 115 mAmpereAPPLICATION* Servo motor control. * Power MOSFET gate drivers.* Other switching applications.FEATURESC-88/SOT-363* Small surface mounting type. (SC-88/SOT-363)* High density cell design for low RDS(ON). * Suitable for high packing density.(1)(S1) (D1)(6)* Rugged and reliable.* High saturation current capability.(G1) 0.651.2~1.4 2.0~2.2* Voltage controlled small signal switch. (G2)0.65(D2)(S2)(4)(3)0.15~0.351.15~1.350.08~0.15 0.8~1.10~0.10.1 Min.(6)D1 G2 (4)S22.15~2.45CIRCUIT(1) D2(3) Dimensions in millimeters SC-88/SOT-363S1 G1Absolute Maximum Ratings TA = 25C unless otherwise noted2N7002SGPSymbol Parameter UnitsVDSS Drain-Source Voltage 60 VVDGR Drain-Gate Voltage (RGS = 1 M ) 60
