View 2n7002t datasheet:

2n7002t2n7002t

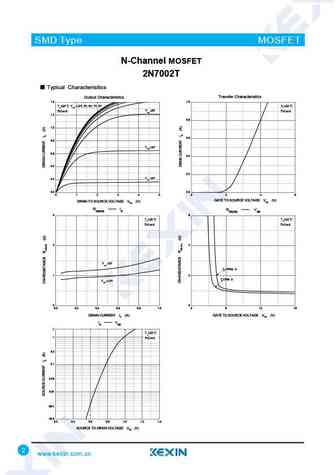

SMD Type MOSFETN-Channel MOSFET2N7002TSOT-523 U nit: m m+0.11.6 -0.1+0.11.0 -0.1+0.050.2 -0.05 0.150.052 1 Features VDS (V) = 60V ID = 115mA3 RDS(ON) 5 (VGS = 10V)0.30.05 RDS(ON) 7 (VGS = 5V)+0.10.5-0.11. Gate2. Source3. Drain Absolute Maximum Ratings Ta = 25Parameter Symbol Rating Unit Drain-Source Voltage VDS 60V Gate-Source Voltage VGS 20 Continuous Drain Current ID 115 mA Power Dissipation PD 150 mW Thermal Resistance.Junction- to-Ambient RthJA 833 /W Junction Temperature TJ 150 Storage Temperature Range Tstg -55 to 150 Electrical Characteristics Ta = 25Parameter Symbol Test Conditions Min Typ Max Unit Drain-Source Breakdown Voltage VDSS ID=250A, VGS=0V 60 V Zero Gate Voltage Drain Current IDSS VDS=60V, VGS=0V 80 nA Gate-Body Leakage Current IG
