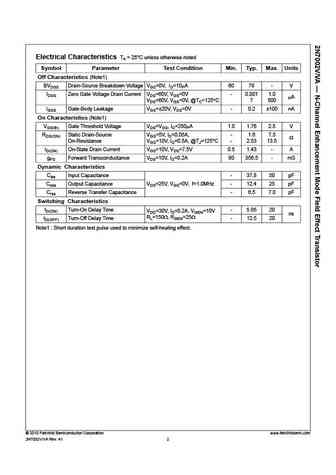

April 20102N7002V/VAN-Channel Enhancement Mode Field Effect TransistorFeatures Dual N-Channel MOSFET Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Ultra-Small Surface Mount Package Lead Free By Design/RoHS Compliant(Pin4)SOT-563FMarking : AB Marking : AC* Pin1 and Pin4 are exchangeable.Absolute Maximum Ratings * TA = 25C unless otherwise notedSymbol Parameter Value UnitsVDSS Drain-Source Voltage 60 VVDGR Drain-Gate Voltage RGS 1.0M 60 VVGSS Gate-Source Voltage Continuous 20V Pulsed 40ID Drain Current Continuous 280 mA Pulsed 1.5 ATJ , TSTG Junction and Storage Temperature Range -55 to +150 C* These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.Thermal CharacteristicsSymb
