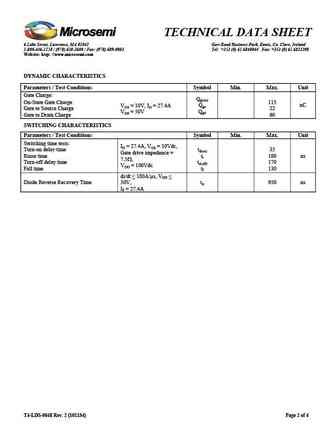

TECHNICAL DATA SHEET 6 Lake Street, Lawrence, MA 01841 Gort Road Business Park, Ennis, Co. Clare, Ireland 1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803 Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298 Website: http: //www.microsemi.com N-CHANNEL MOSFET Qualified per MIL-PRF-19500/592 DEVICES LEVELS 2N7225 2N7225U JANJANTXJANTXVABSOLUTE MAXIMUM RATINGS (TC = +25C unless otherwise noted) Parameters / Test Conditions Symbol Value Unit Drain Source Voltage VDS 200 Vdc Gate Source Voltage VGS 20 Vdc Continuous Drain Current ID1 27.4 Adc TC = +25C Continuous Drain Current ID2 17 Adc TC = +100C Max. Power Dissipation (1)Ptl 150 W TC = +25C (2)Drain to Source On State Resistance Rds(on) 0.1 TO-254AA Operating & Storage Temperature Top, Tstg -55 to +150 C Note: (1) Derated Linearly by 1.2 W/C for TC >
