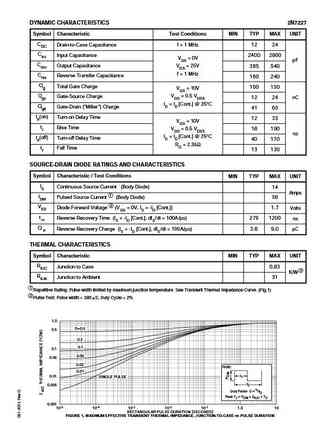

View 2n7227 datasheet:

2n72272n7227

DTO-254G2N7227 400 Volt 0.315SJX2N7227*JV2N7227*TMPOWER MOS IV*QUALIFIED TO MIL-S-19500/592 31/7/92JEDEC REGISTERED N - CHANNEL HIGH VOLTAGE POWER MOSFETSMAXIMUM RATINGS All Ratings: TC = 25C unless otherwise specified.Symbol Parameter 2N7227 UNITVDSS Drain-Source Voltage400VoltsVGS Gate-Source Voltage20Continuous Drain Current @ TC = 25C14IDContinuous Drain Current @ TC = 100C 9AmpsIDM Pulsed Drain Current 156IAR Avalanche Current 114Total Power Dissipation @ TC = 25C150WattsPD Total Power Dissipation @ TC = 100C60Linear Derating Factor1.2 W/KEAS Single Pulse Avalanche Energy700mJEAR Repetitive Avalanche Energy15TJ,TSTG Operating and Storage Junction Temperature Range-55 to 150CTLMax. Lead Temp. for Soldering Conditions: 0.063" from Case for 10 Sec.300STATIC ELECTRICAL CHARACTER
