View 2n7261 2n7261u datasheet:

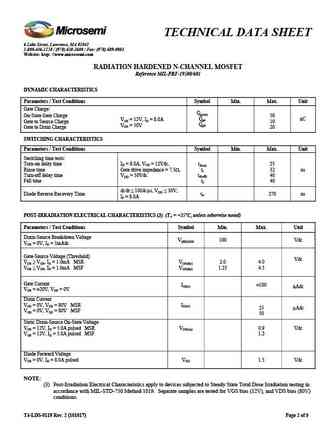

2n7261_2n7261u2n7261_2n7261u

TECHNICAL DATA SHEET 6 Lake Street, Lawrence, MA 01841 1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803 Website: http: //www.microsemi.com RADIATION HARDENED N-CHANNEL MOSFET Reference MIL-PRF-19500/601 DEVICES LEVELS 2N7261 2N7261U JANSR (100K RAD(Si)) JANSF (300K RAD(Si))ABSOLUTE MAXIMUM RATINGS (TC = +25C unless otherwise noted) Parameters / Test Conditions Symbol Value Unit Drain Source Voltage VDS 100 VdcGate Source Voltage VGS 20 VdcContinuous Drain Current ID1 8.0 AdcTC = +25C Continuous Drain Current ID2 5.0 AdcTC = +100C (1)Max. Power Dissipation Ptl 25 W (2)Drain to Source On State Resistance Rds(on) 0.180 Operating & Storage Temperature Top, Tstg -55 to +150 CTO-205AF Note: (1) Derated Linearly by 0.2 W/C for TC > +25C (modified TO-39) (2) VGS = 12Vdc, ID = 5.0A JANSR2N7261, JANSF2N7261
