View 2sa1011 datasheet:

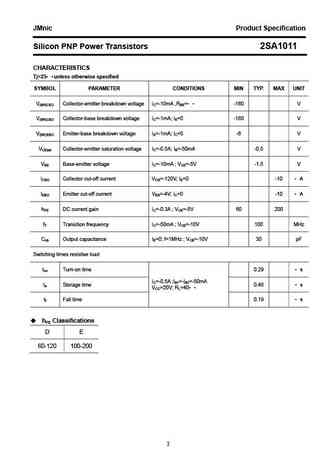

JMnic Product Specification Silicon PNP Power Transistors 2SA1011 DESCRIPTION With TO-220 package Complement to type 2SC2344 APPLICATIONS High voltage switching , Audio frequency power amplifier; 100W output predriver applications PINNING PIN DESCRIPTION1 Emitter Collector;connected to 2 mounting base 3 BaseAbsolute maximum ratings(Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -180 V VCEO Collector-emitter voltage Open base -160 V VEBO Emitter-base voltage Open collector -6 V IC Collector current -1.5 A ICM Collector current-Peak -3.0 APC Collector power dissipation TC=25 25 W Tj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Product Specification Silicon PNP Power Transistors 2SA1011 CHARACTERISTICS Tj=25 unless otherwise specified SYMBOL PA
