View 2sa1013sq-r 2sa1013sq-o 2sa1013sq-q datasheet:

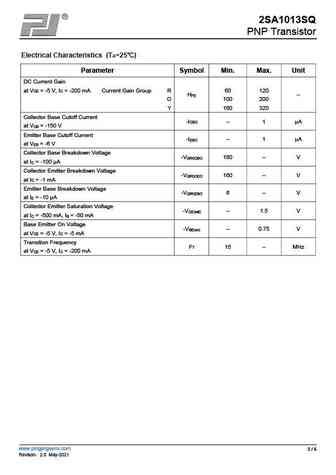

2SA1013SQ PNP TransistorFeatures SOT-89 High voltage Large continuous collector current capabilityEquivalent Circuit 2.Collector1.Base 2.Collector 3. EmitterMarking Code : 2SA1013SQ-R : 1013R 1.Base2SA1013SQ-O : 1013O 2SA1013SQ-Y : 1013Y3. Emitter.Absolute Maximum Ratings Ratings at 25 ambient temperature unless otherwise specified.Parameter Symbol Value UnitCollector Base Voltage -V 160 VCBOCollector Emitter Voltage -V 160 VCEOEmitter Base Voltage -V 6 VEBOCollector Current -I 1 ACMaximum Power Dissipation P 0.5 WDJunction Temperature T 150 JStorage Temperature Range T -55 to +150 STGwww.pingjingsemi.com 1 / 6Revison2.0 May-20212SA1013SQ PNP TransistorElectrical Characteristics (T =25) AParameter Symbol Min. Max. UnitDC Current Gainat V = -5 V, I = -200 mA Current Gain Group R 60
