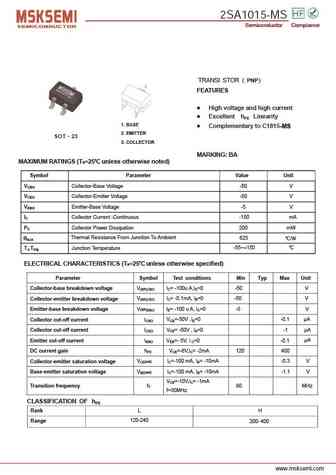

View 2sa1015-ms datasheet:

www.msksemi.com2SA1015-MSSemiconductor CompianceSemiconductor Compiance TRANSI STOR ( PNP)FEATURES High voltage and high current Excellent hFE Linearity1. BASE Complementary to C1815-MS2. EMITTERSOT23 3. COLLECTORMARKING: BA MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value UnitVCBO Collector-Base Voltage -50 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -5 V IC Collector Current -Continuous -150 mA PC Collector Power Dissipation 200 mW Thermal Resistance From Junction To Ambient 625 RJA /W TJ,Tstg Junction Temperature -55~+150ELECTRICAL CHARACTERISTICS (Ta=25 unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC= -100u A,IE=0 -50 V Collector-emitter breakdown voltage V(BR)CEO IC= -0.1mA, IB=0 -50
