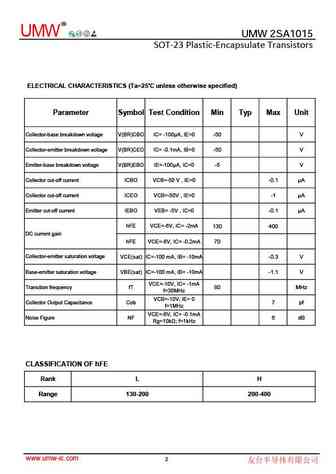

RUMW UMW 2SA1015 SOT-23 Plastic-Encapsulate Transistors TRANSI STOR (PNP)2SA1015MARKING: Equivalent Circuit:SOT-231.BASE2.EMITTER3.COLLECTORFEATURES: High voltage and high current Excellent hFE Linearity Complementary to C1815 MAXIMUM RATINGS (Ta=25 unless otherwise noted)Parameter Symbol Value UnitCollector-Base Voltage VCBO -50 VCollector-Emitter Voltage VCEO -50 VEmitter-Base Voltage VEBO -5 VCollector Current IC -150 mACollector Power Dissipation PC 200 mWThermal Resistance From Junction To Ambient RJA 625 /WJunction Temperature Tj 150 Storage Temperature Tstg -55+150 www.umw-ic.com1 RUMW UMW 2SA1015 SOT-23 Plastic-Encapsulate Transistors ELECTRICAL CHARACTERISTICS (Ta=25 unless otherwise specified)Parameter Symbol Test Condition Min Typ Max UnitCollector-
