View 2sa1093 datasheet:

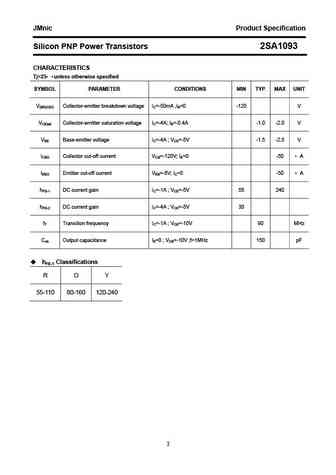

JMnic Product Specification Silicon PNP Power Transistors 2SA1093 DESCRIPTION With TO-3P(I) package Complement to type 2SC2563 High transition frequency APPLICATIONS Audio frequency power amplifier applicatios PINNING PIN DESCRIPTION1 Emitter Collector;connected to 2 mounting base Fig.1 simplified outline (TO-3P(I)) and symbol 3 BaseAbsolute maximum ratings(Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -120 V VCEO Collector-emitter voltage Open base -120 V VEBO Emitter-base voltage Open collector -5 V IC Collector current -8 A IB Base current -0.8 APT Total power dissipation TC=25 80 W Tj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Product Specification Silicon PNP Power Transistors 2SA1093 CHARACTERISTICS Tj=25 unless otherwise specified
