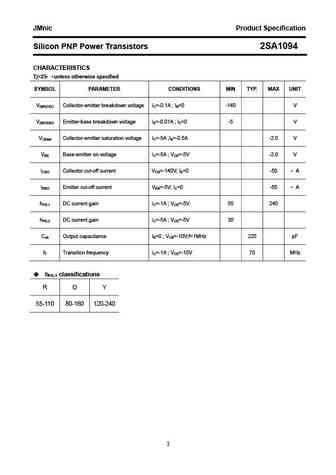

JMnic Product Specification Silicon PNP Power Transistors 2SA1094 DESCRIPTION With MT-200 package Complement to type 2SC2564 APPLICATIONS For power amplifier applications PINNING(see Fig.2) PIN DESCRIPTION1 Base Collector;connected to 2 mounting base Fig.1 simplified outline (MT-200) and symbol 3 EmitterAbsolute maximum ratings(Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -140 V VCEO Collector-emitter voltage Open base -140 V VEBO Emitter-base voltage Open collector -5 V IC Collector current -12 A IB Base current -1.2 A PC Collector power dissipation TC=25 120 W Tj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Product Specification Silicon PNP Power Transistors 2SA1094 CHARACTERISTICS Tj=25 unless otherwise specified SYMBOL PARAMETER CONDITIONS M
