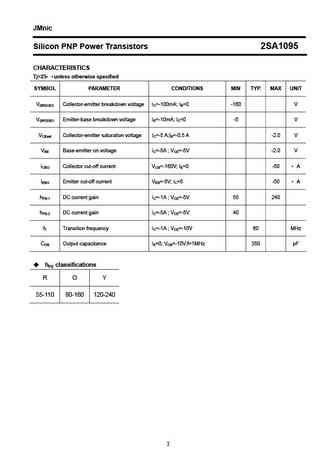

JMnic Product Specification Silicon PNP Power Transistors 2SA1095 DESCRIPTION With MT-200 package Complement to type 2SC2565 High breakdown voltage High transition frequency APPLICATIONS Power amplifier applications Recommended for 100W high-fidelity audio frequency amplifer output stage PINNING(see Fig.2) PIN DESCRIPTION1 Base Collector;connected to 2 mounting base Fig.1 simplified outline (MT-200) and symbol 3 EmitterAbsolute maximum ratings (Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -160 V VCEO Collector-emitter voltage Open base -160 V VEBO Emitter-base voltage Open collector -5 V IC Collector current -15 A IE Emitter current 15 APC Collectorl power dissipation TC=25 150 W Tj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Silicon PNP
