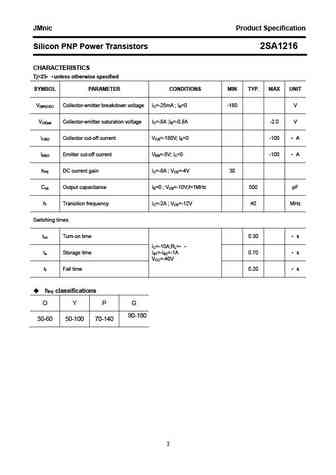

JMnic Product Specification Silicon PNP Power Transistors 2SA1216 DESCRIPTION With MT-200 package Complement to type 2SC2922 APPLICATIONS Audio and general purpose PINNING(see Fig.2) PIN DESCRIPTION1 Base Collector;connected to 2 mounting base Fig.1 simplified outline (MT-200) and symbol 3 EmitterAbsolute maximum ratings(Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -180 V VCEO Collector-emitter voltage Open base -180 V VEBO Emitter-base voltage Open collector -5 V IC Collector current -17 A IB Base current -5 A PC Collector power dissipation TC=25 200 W Tj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Product Specification Silicon PNP Power Transistors 2SA1216 CHARACTERISTICS Tj=25 unless otherwise specified SYMBOL PARAMETER CONDITIONS MIN TYP.
