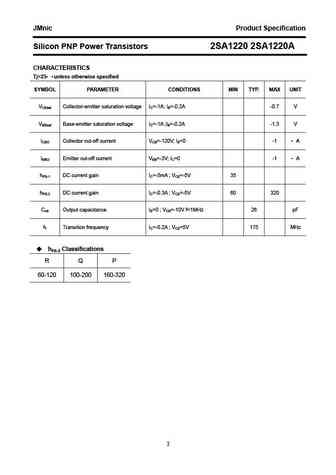

JMnic Product Specification Silicon PNP Power Transistors 2SA1220 2SA1220A DESCRIPTION With TO-126 package Complement to type 2SC2690/2690A APPLICATIONS Audio frequency power amplifier High frequency power amplifier PINNING PIN DESCRIPTION1 Emitter Collector;connected to 2 mounting base 3 BaseAbsolute maximum ratings(Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNIT2SA1220 -120VCBO Collector-base voltage Open emitter V 2SA1220A -160 2SA1220 -120VCEO Collector-emitter voltage Open base V 2SA1220A -160 VEBO Emitter-base voltage Open collector -5 V IC Collector current -1.2 AICM Collector current-peak -2.5 AIB Base current -0.3 ATa=25 1.2 PD Total power dissipation W TC=25 20 Tj Junction temperature 150 Tstg Storage temperature -55+150 JMnic Product Specification Silicon PNP Power Transistors 2S
