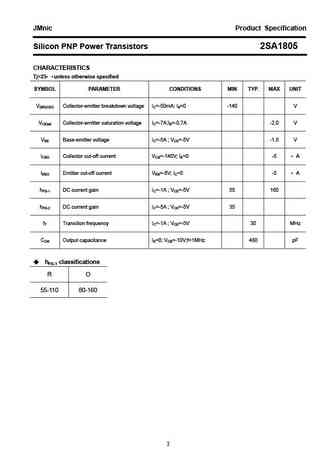

JMnic Product Specification Silicon PNP Power Transistors 2SA1805 DESCRIPTION With TO-3PFM package Complement to type 2SC4690 APPLICATIONS Power amplifier applications Recommend for 70W high fidelity audio frequency amplifier output stage PINNING (see Fig.2 ) PIN DESCRIPTION1 Base 2 CollectorFig.1 simplified outline (TO-3PFM) and symbol 3 EmitterAbsolute maximum ratings(Tc=25) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -140 V VCEO Collector-emitter voltage Open base -140 V VEBO Emitter-base voltage Open collector -5 V IC Collector current -10 A ICM Collector current-peak -20 AIB Base current -1 APC Collector power dissipation TC=25 80 WTj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Product Specification Silicon PNP Power Transistors 2SA1805 CHARACTER
